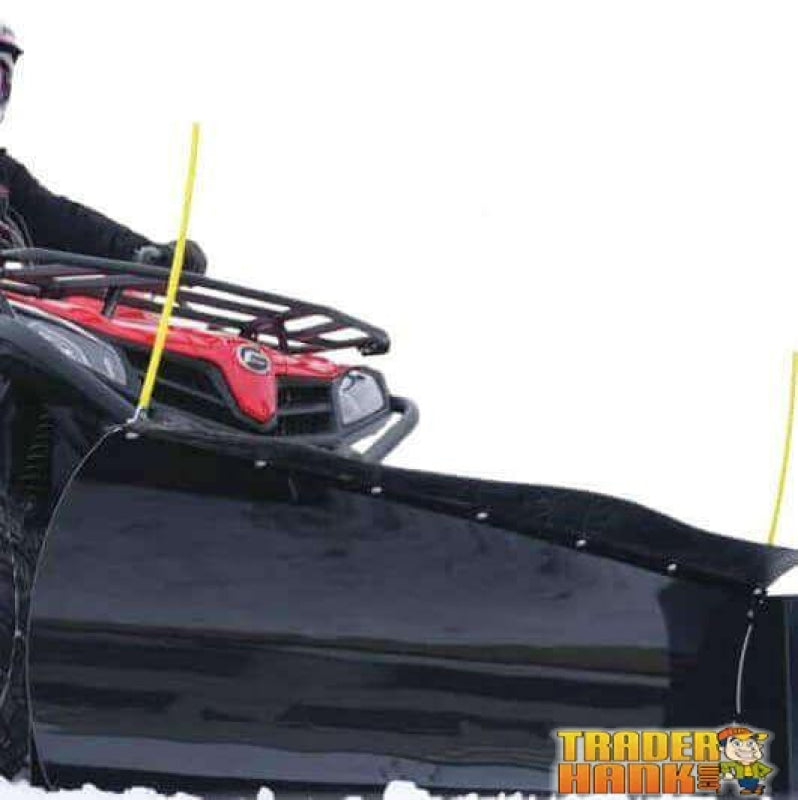

2018-2019 Caterpillar CUV 50 Inch Gen II Eagle Country Blade Snow Plow Kit

• 50 inches wide and 17-21.75 inches tall for angled cut width of 43.75 inches
• Slanted design is best used for high capacity plowing
• Tough, heavy duty wear bar is reversible and replaceable
• Manually adjusts to 5 blade positions side to side
• Adjustable, bolt-on blade stops offer 4 blade pitch positions
• Includes ubber flap and plow markers
• Adjustable skid shoes with spacers allow for smooth surface contact
• Blade mounts to the push tube swivel with 1/2” bolts
• Comes with trip springs and eye bolts for added blade plowing protection

• Manufactured from 1-1/2” high strength square tubing

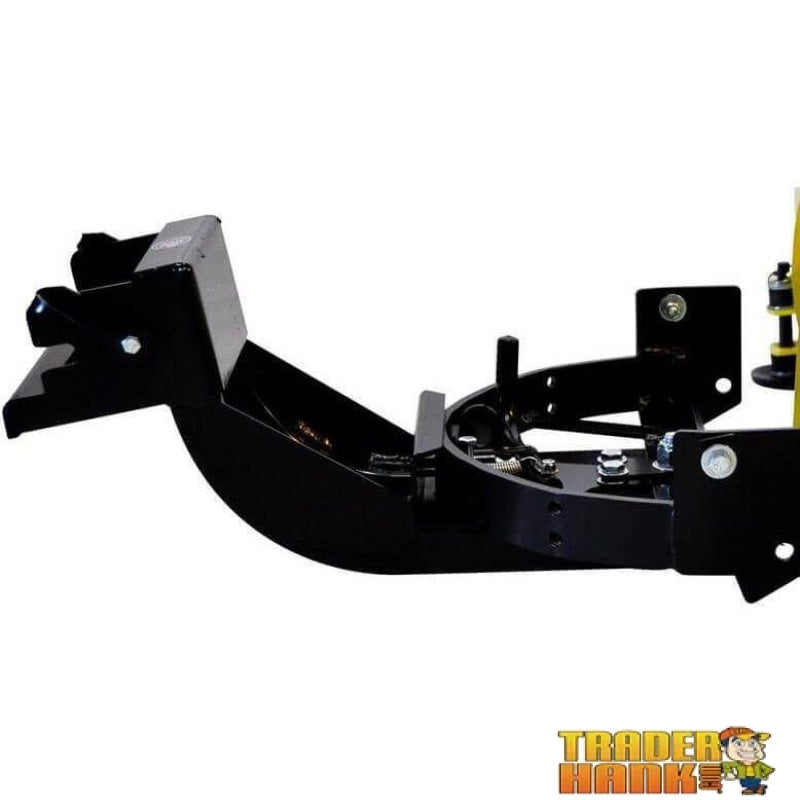

• Attaches in seconds with the Quick-Latch brackets and locks in place
• V-shaped design and cross bars for increased stability
• Swivel adjust to 5 positions offering 30° of rotation to each side
• Swivel rotates on a heavy duty 5/8” bolt mounted to 1/4” solid steel
• Powder coated jet black

• Front mount
• Quick-Latch pins offer instant engaging and disengaging
• Some mounts recommended to be removed in off-season to maintain ground clearance
• Powder coated jet black

Kit Includes:

• Blade
• Push tube
• Model specific plow mount
