2018 Argo Xplorer 50 Inch Eagle Straight Blade Snow Plow Kit

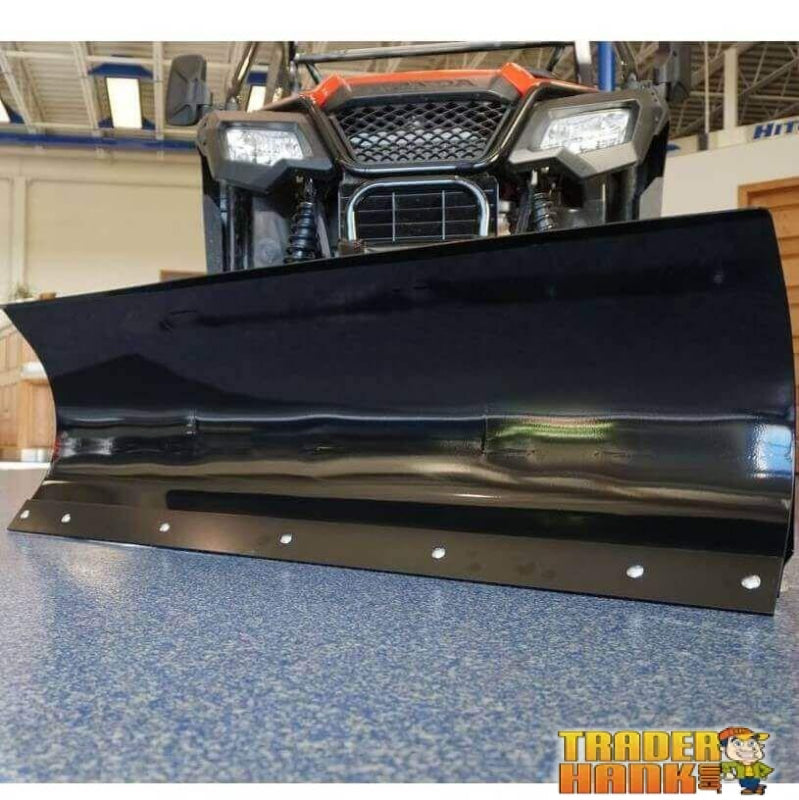

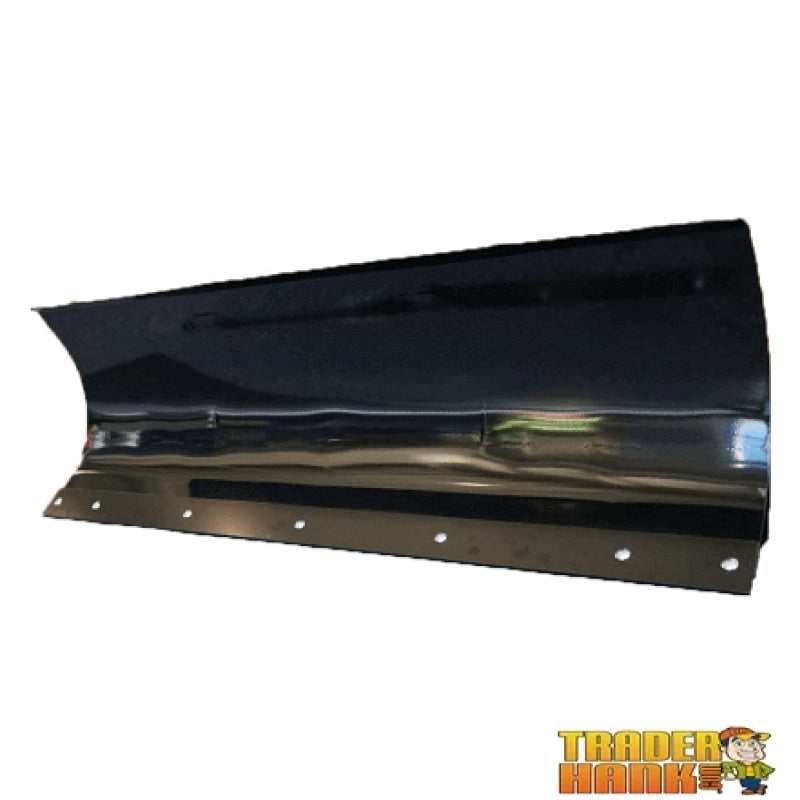

Straight Blade Features:

• 50 inches wide and 15.75 inches tall for angled cut width of 43.75 inches
• Tough, heavy duty wear bar is reversible and replaceable
• Manually adjusts to 5 blade positions side to side
• Adjustable, bolt-on blade stops offer 4 blade pitch positions
• Use the adjustable skid shoes with spacers to protect the blade and surface
• Blade mounts to the push tube swivel with 1/2” bolts
• Comes with trip springs and eye bolts for added blade plowing protection

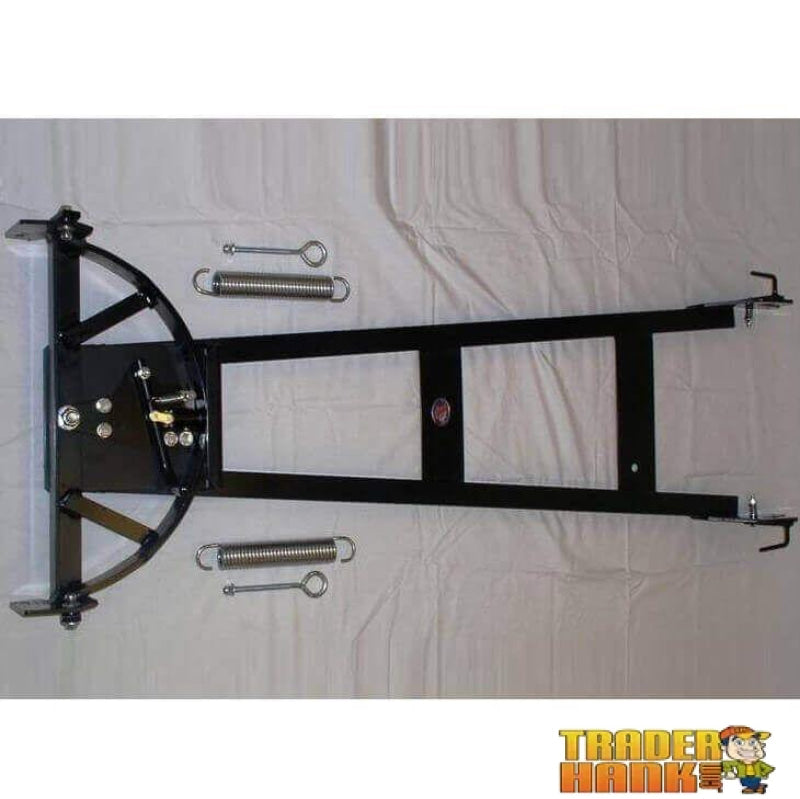

Push Tube Features:

• Manufactured from 1-1/2” high strength square tubing
• Attaches in seconds with the Quick-Latch brackets and locks in place
• V-shaped design and cross bars for increased stability
• Swivel adjust to 5 positions offering 30° of rotation to each side
• Swivel rotates on a heavy duty 5/8” bolt mounted to 1/4” solid steel
• Powder coated jet black

Universal Push Tube Mount Features:

• Offers pins for instant engaging and disengaging of plow system with the Quick-Latch Brackets
• Made from 10-gauge steel and attaches with provided grade 5 carriage bolts
• Removable after the season and replaceable
• Powder coated jet black

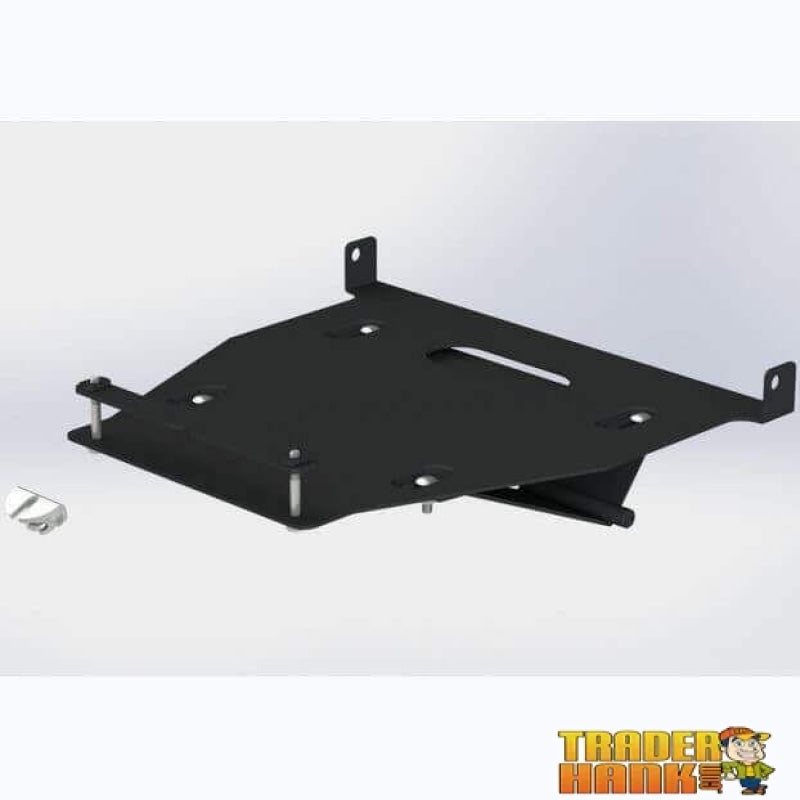

Plow Mount Features:

• Mid mount
• Can stay on year-round and acts as a steel, skid plate
• Won’t affect oil changing or ground clearance
• Made from 11-gauge steel and attaches with provided hardware
• Powder coated jet black

Kit Includes:

• Blade
• Push tube
• Universal push tube mount
• Model specific plow mount

NOTE: Must have a winch to use plow system.
