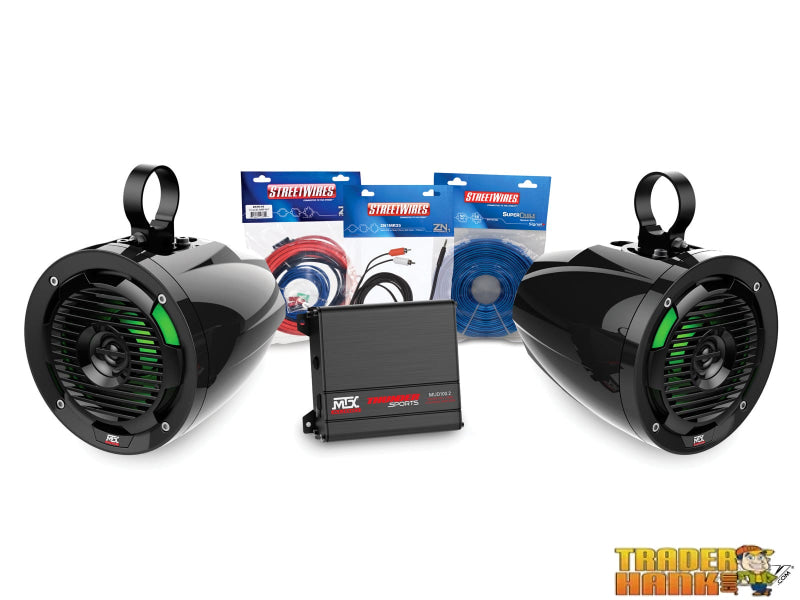

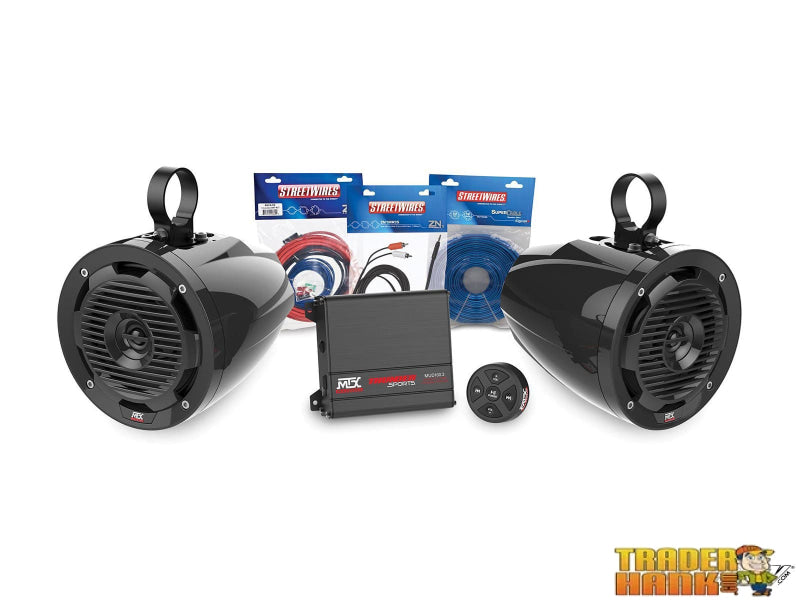

MTX Uni-1 Amplifier and Roll Cage Speaker Kit
All-in-One Kit for Awesome Sound
Looking for an all-in-one kit to pump your jams out on the trail? We’ve got just what you need: MTX’s UNI-1-ADDON or UNI-1-AUX Amplifier and Roll Cage Speaker Kit. It fits all tubes between 1.75” and 2”, making it nearly universal. This kit comes with an MTX MUD100-2 amplifier, two 6.5” speaker pods, and all the wiring you need. This kit is compatible with any source—you can choose between RCA, 3.5 mm headphone jack, or Bluetooth connections. Whether you’re cruising in a Jeep, UTV, or another machine, these speakers will have everybody rocking and rolling with you.

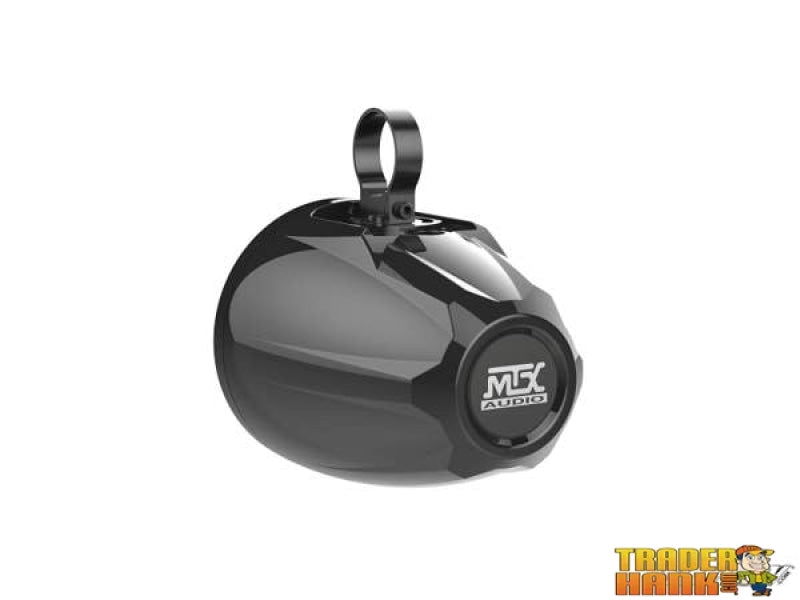

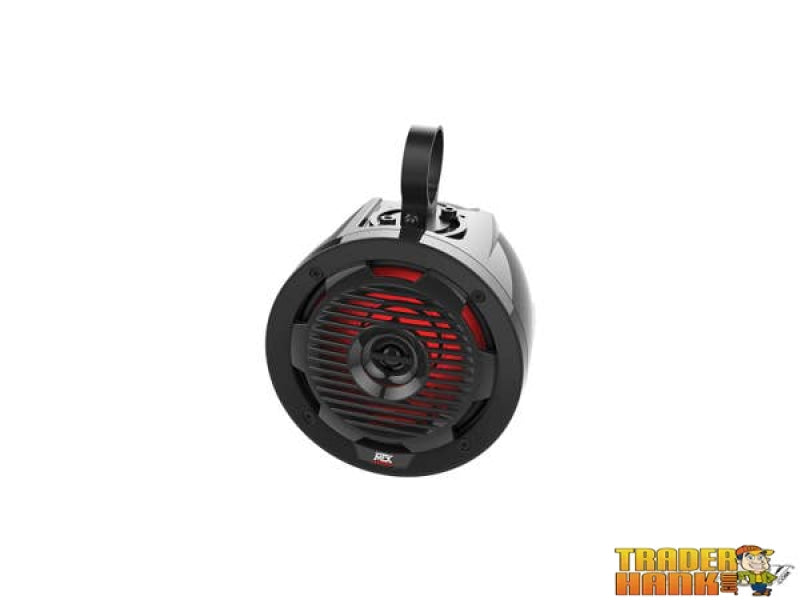

Speakers to Fit Your Cage
With this kit, you get two 6.5” weather-resistant speaker pods. They’re impact resistant and have integrated RGB lighting for maximum head-turning potential. Thanks to adjustable clamps that mount easily to 1.75”, 1.85”, or 2” bars, you’ll be ready to set the ride’s soundtrack without working too hard to install it.
| Speaker Specs | |
| Speaker Size | 6.5", 2-Way |
| Sensitivity | 86dB |
| Impedance | 86dB |
| Frequency Response | 70Hz-20kHz |
| Dimensions | 9.34" x 7.09" x 8.76" |

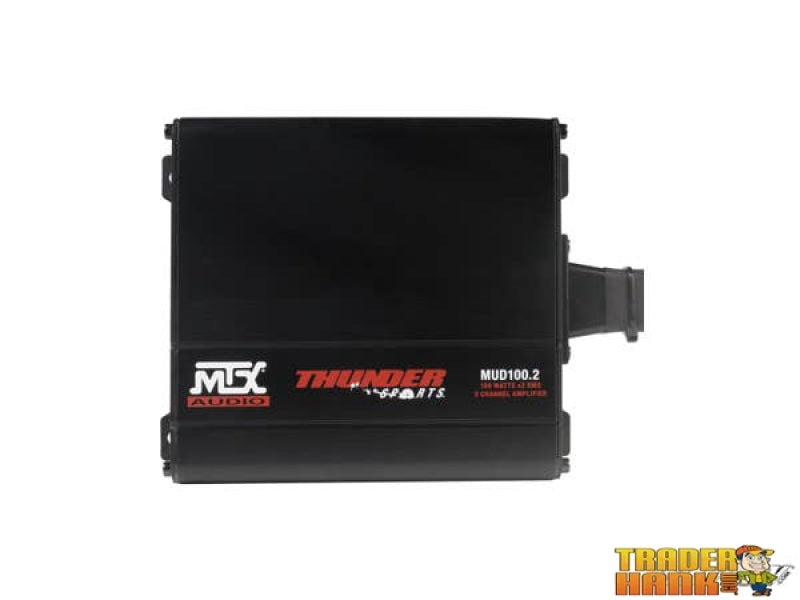

Small But Might Amplifier
This kit comes with MTX’s MUD100-2 amplifier. It’s small, but it packs a major punch in the sound department! That small size makes it more convenient for mounting on smaller machines and it’s corrosion and weather-resistant for maximum longevity. And 200 watts RMS power is enough to run these speaker pods and then some.
| Amplifier Specs | |
| Description | 2-Channel |
| Sensitivity | 86dB |
| 4Ω RMS Power Output | 50W x 2 Channels |
| 2Ω RMS Power Output | 100W x 2 Channels |
| Topology | Full Range Class D |
| THD | <1.0% |
| Frequency Response | 20Hz - 20kHz |
| Crossover | Fixed HPF/LPF @ 80Hz, 12dB/Oct |
| Max Sensitivity | 200mV |
| Maximum Input Signal | 5V |
| Dimensions | 4.65" x 5.71" x 1.61" |

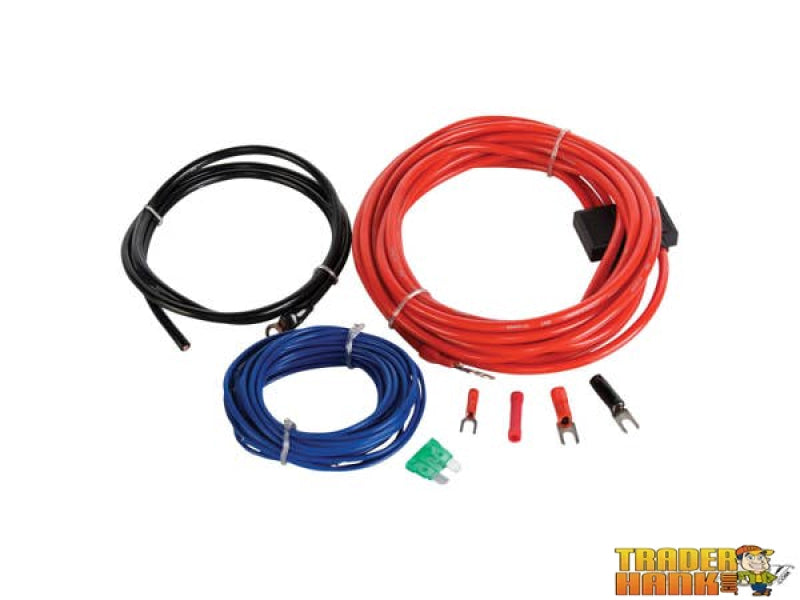

All the Wires and Cables You Need
MTX includes all the wiring you need to get your speaker pods up and running. You get a power kit to connect the amp to the battery, a stereo cable connector from your source to the amp, and 18 gauge speaker wires.
Wiring Kit Includes
- 3m (9.8') 10 AWG Red Power Cable with ATC Fuse Holder
- 3m (9.8') 10 AWG Black Ground Cable
- 3m (9.8') 22 AWG Remote Wire
- 10 AWG Ringer Terminal 5/16”
- 10 AWG Ring Terminal 3/16”
- (2) 10 AWG Spade Connectors
- 18 AWG Red Butt Connector
- 30A ATC Fuse
Features
- Compact design
- Corrosion-resistant circuit board
- High and low pass crossovers for use with full-range speakers or subwoofers
- High and low-level inputs allow connection to both speaker and RCA input signals
- 2Ω Stable
- 2 Channels
- Footprint fits most OEM motorcycle radios
- Full Range class D topology
- Bridgeable
Speakers
- Weather resistant
- (2) 6.5" Speaker Pods
- 2-way
- Fits bars between 1.75†and 2â€
- Internal crossover network
- Impact resistant
- Integrated RGB lighting
Fitment
RCA Outputs: UNI-1-ADDON uses RCA outputs and is compatible with any RCA source.
3.5mm Jack:UNI-1-AUX uses a 3.5 mm headphone jack and is compatible with MTX 6 Speaker Universal Sound Bar, MTX Universal Bluetooth Receiver/Remote, and MTX AWBTSW Bluetooth Rocker Switch.
Bluetooth:UNI-1-MUDBTRC comes with the MTX Universal Bluetooth Receiver/Remote and is compatible with all Bluetooth-enabled devices
